Name: VPDM-300 Vacuum speed
Model: VPDM300
Introduction: VPDM-300 Vacuum speed mixer Used for mixing various liquid or powder materials
  • Parameter
  • Video
  • Test case
  • Clients

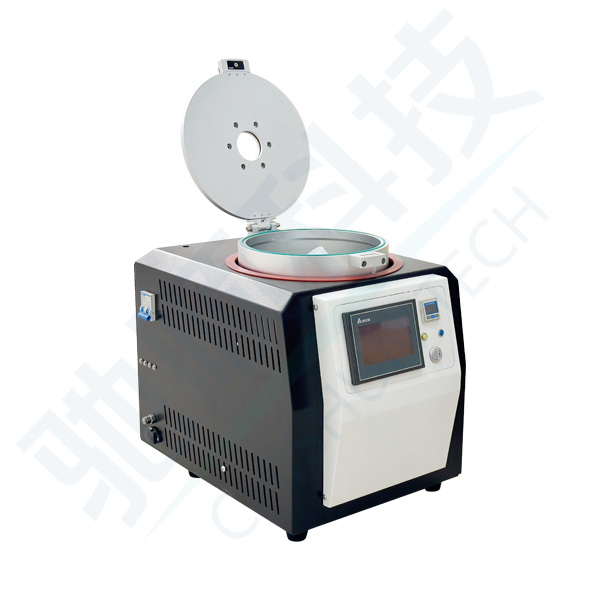

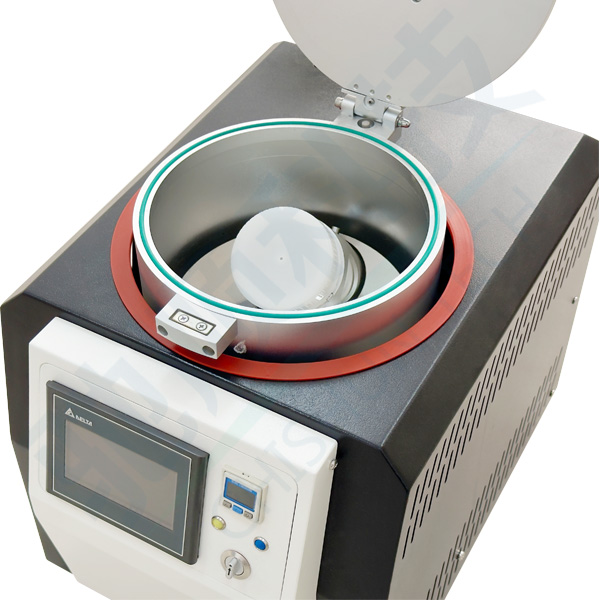

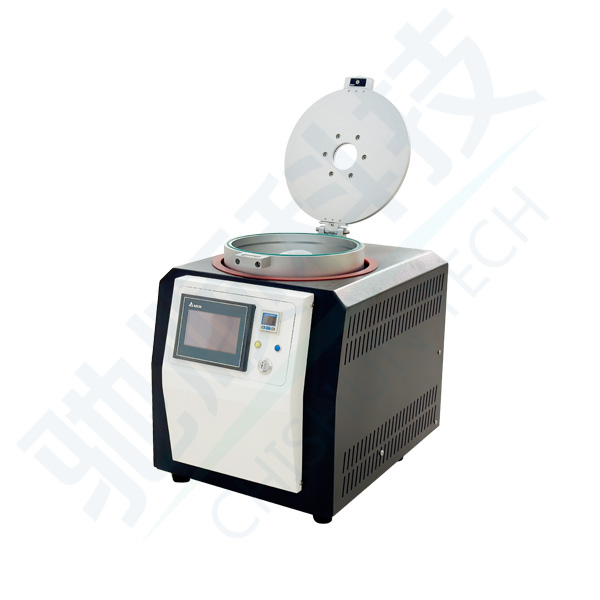

VPDM300 Vacuum defoaming mixer is a planetary vacuum centrifugal mixer that can be used to mix various liquids or powder materials. The sample materials can be nano powder, conductive ceramics, battery powder or slurry, carbon nanotubes, oxide powder and metal powder. This device is particularly suitable for mixing some high viscosity materials. At the same time, the equipment includes a 300ml vacuum mixing tank, which can ensure that the samples are mixed in a vacuum state to achieve better experimental results.


Application area

The mixing and stirring fields of materials for products in high, sharp and refined fields such as LED, LCD, medical devices, electronic components, nano powder materials, fine chemical materials, printing electronic materials, electronic packaging materials and new energy materials, such as phosphor, glue, silica gel, silver paste, aluminum paste, adhesive, ink, silver nanoparticles, silver nanowires, conductive silver glue, insulation glue, battery paste, etc.


Differentnames

1、Planetary vacuum stirring and defoaming machine

2、Vacuum defoaming machine


Competitive Advantage

1、Factory direct delivery

2、Quality assurance

3、Best price

4、Compact in size

5、Complete specifications

6、Service Assurance


Specifications

Vacuum grinding:

YES

Regular time:

1-10min

Max. grinding:

The maximum mixing capacity of the material is 100-300g (net weight), and the adapter+container should not be less than 160g

Number of grinding platforms:

1pc

Max. speed:

2500r/min

Noise:

40-50db

Tank capacity:

≤300ml/300g

Vacuum gauge:

Japanese SMC pressure sensor

Vacuum solenoid valve:

AirTAC

Control mode:

Programmable touch screen

Drive motor and controller:

Brushless motor, brushless driver

Electrical description:

AC220V 0.4kw50Hz
