Description:

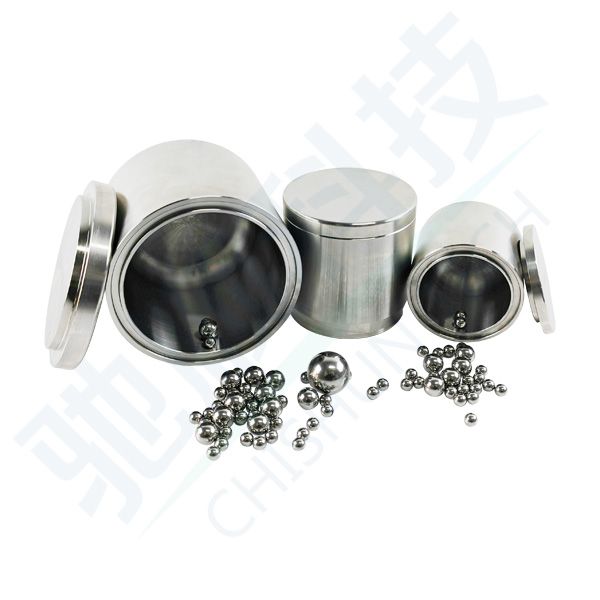

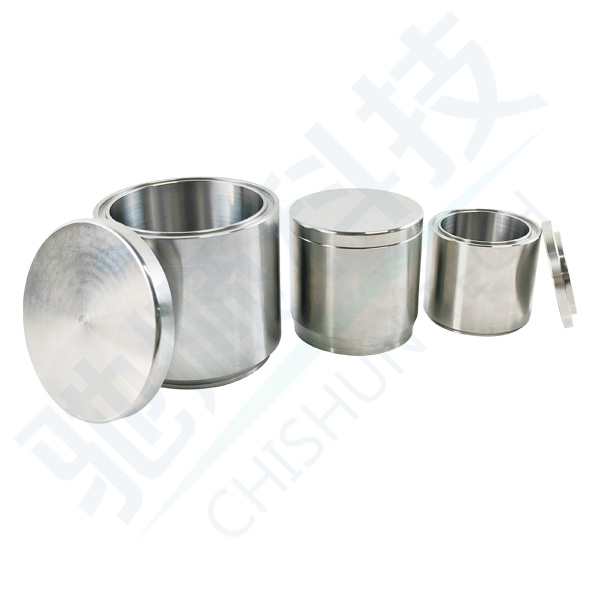

Stainless steel ball milling tank has high strength, strong acid and alkali resistance, and low wear
Application areas: metals, ceramics, plastics, pharmaceuticals, glass, laboratories
Feature:
1、Bright appearance: The surface is bright, and the inner wall is smooth to prevent the sample from sticking to the wall or clumping
2、Strong acid and alkali resistance: Stainless steel material has strong oxidation resistance, long service life, and high grinding efficiency
3、Good sealing performance: The high density and hardness bring strong crushing and grinding ability, good wear resistance, good sealing performance, and no leakage
Dimension:(unit:mm)
Volume |
Dimension |
Internal diameter |
Outside diameter |
Thickness |
50ml |
φ57*57 |
44 |
57 |
6.5 |
100ml |
φ68*68 |
52 |
68 |
8 |
250ml |
φ90*90 |
74 |
90 |
8 |
500ml |
φ105*107 |
89 |
105 |
8 |
1000ml |
φ131*125 |
114 |
131 |
8.5 |
3000ml |
φ*220 |
144 |
168 |
12 |
