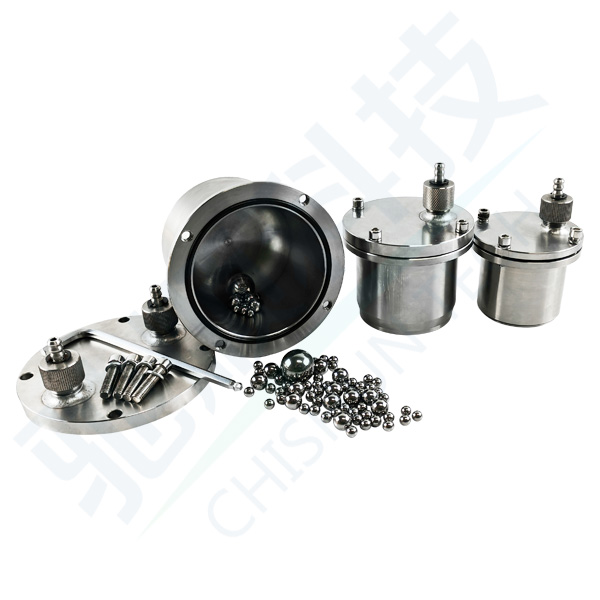

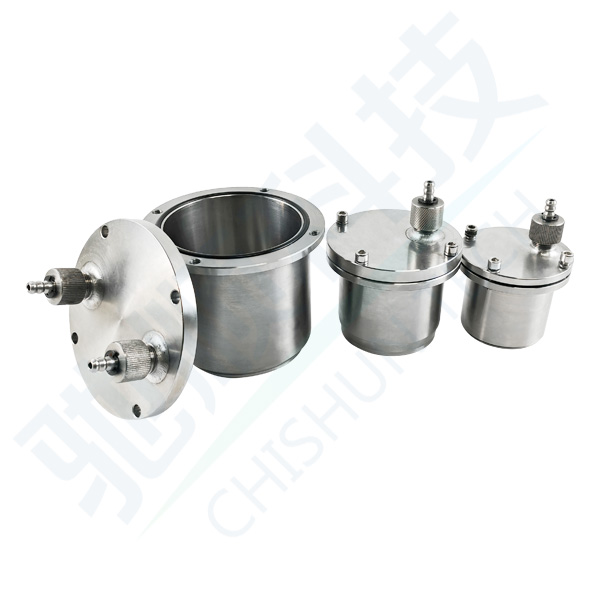

Name: Vacuum stainless steel jars
Model: 50ml~5000ml
Introduction: Vacuum stainless steel jars of different volumes 50ml to 5000ml suitable for planetary ball mill
  • Parameter
  • Video
  • Test case
  • Clients

Description

1Transparent tank body: The tank body has an overall structural design, which is beautiful and sturdy

2Large arc angle: There will be no adverse phenomena such as gap leakage, material storage dead corners, etc. during use

3Tank wall thickness: convenient opening and sealing of the filling port, tightly sealed to prevent material leakage

4High quality: reasonable structure, light weight, beautiful appearance, convenient loading and unloading of materials, convenient sealing and opening of filling ports, good wear resistance

5High precision: The tank body has thick walls, is sturdy and durable, has a long service life, low noise, and is not easily contaminated by grinding materials


Dimension(unit:mm)

Volume

Dimension

Internal diameter

Outside diameter

Thickness

50ml

72*72*58/90

47

72

12.5

100ml

83*83*68/100

52

83

15.5

250ml

108*108*93/125

80

108

14

500ml

125*125*107/139

89

125

18

1000ml

160*160*126/157

115

160

22.5
